Description

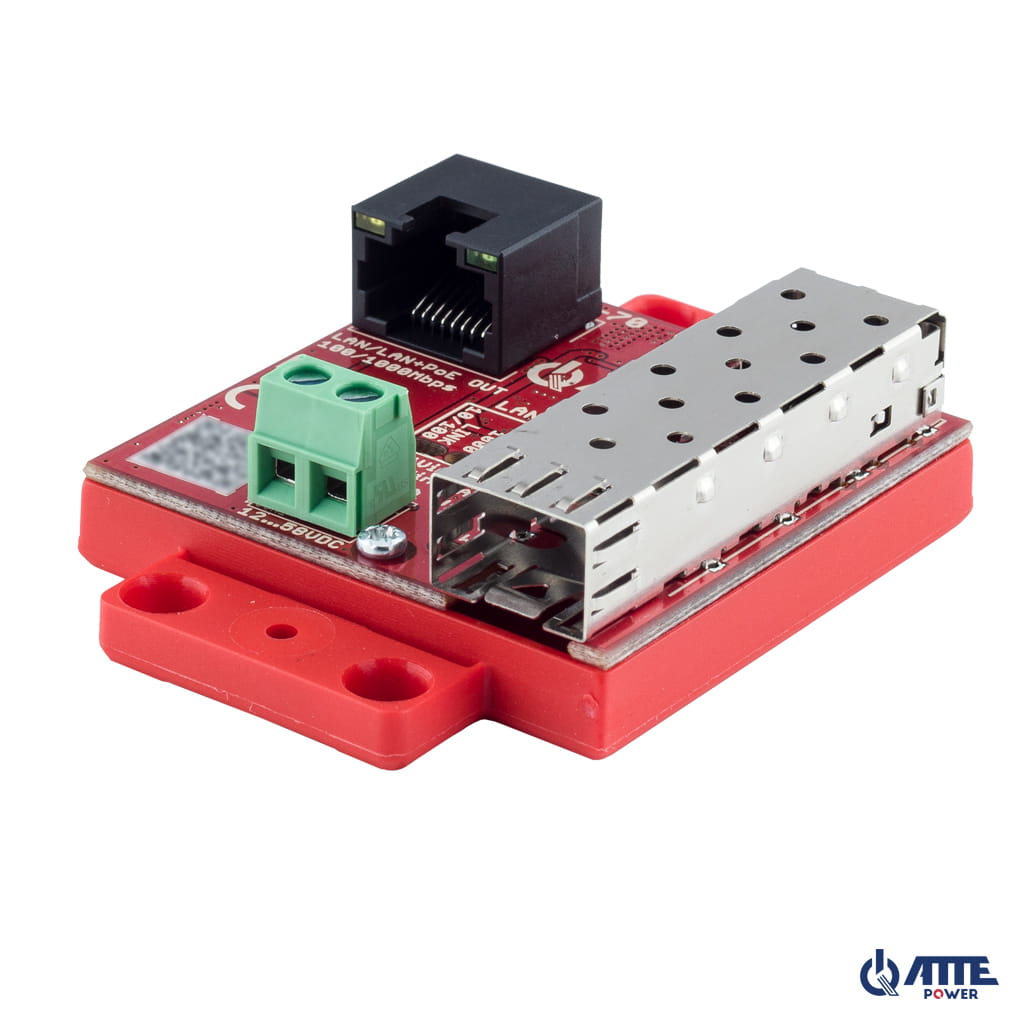

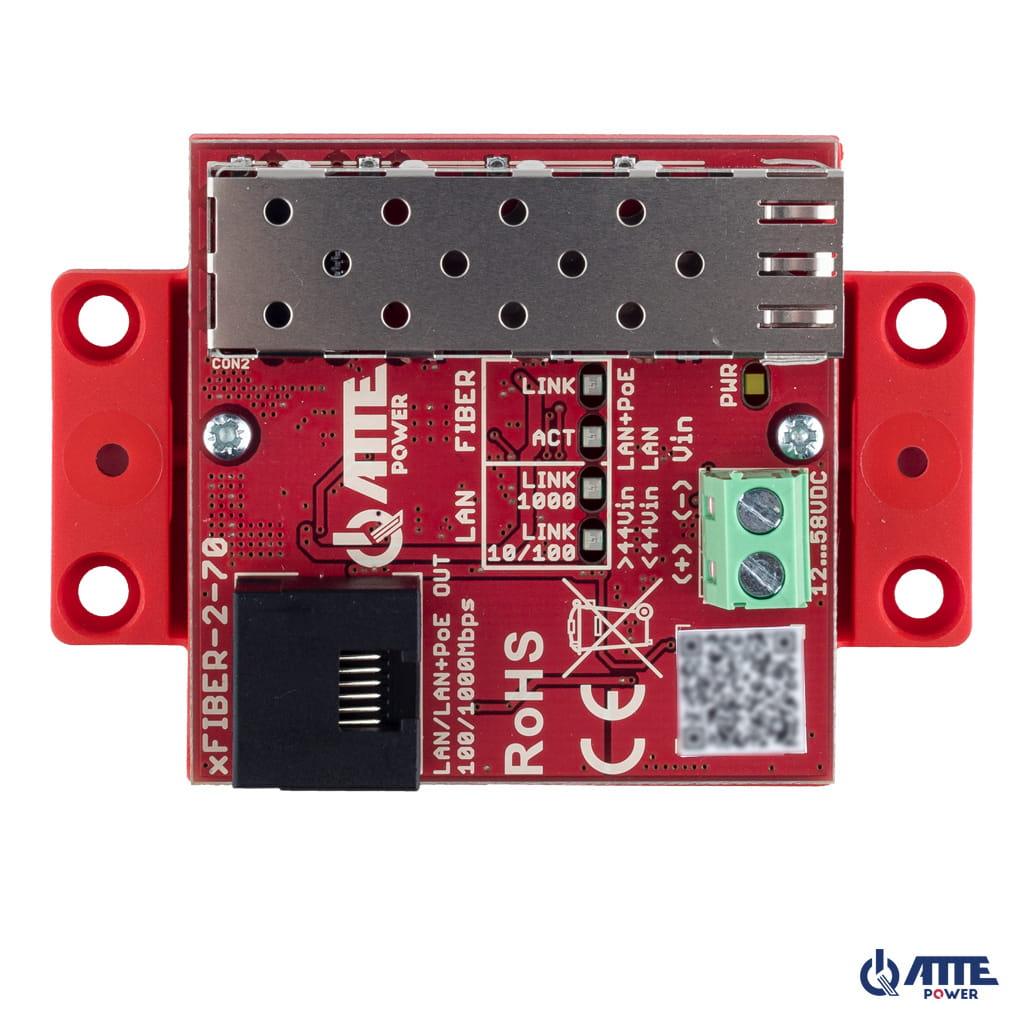

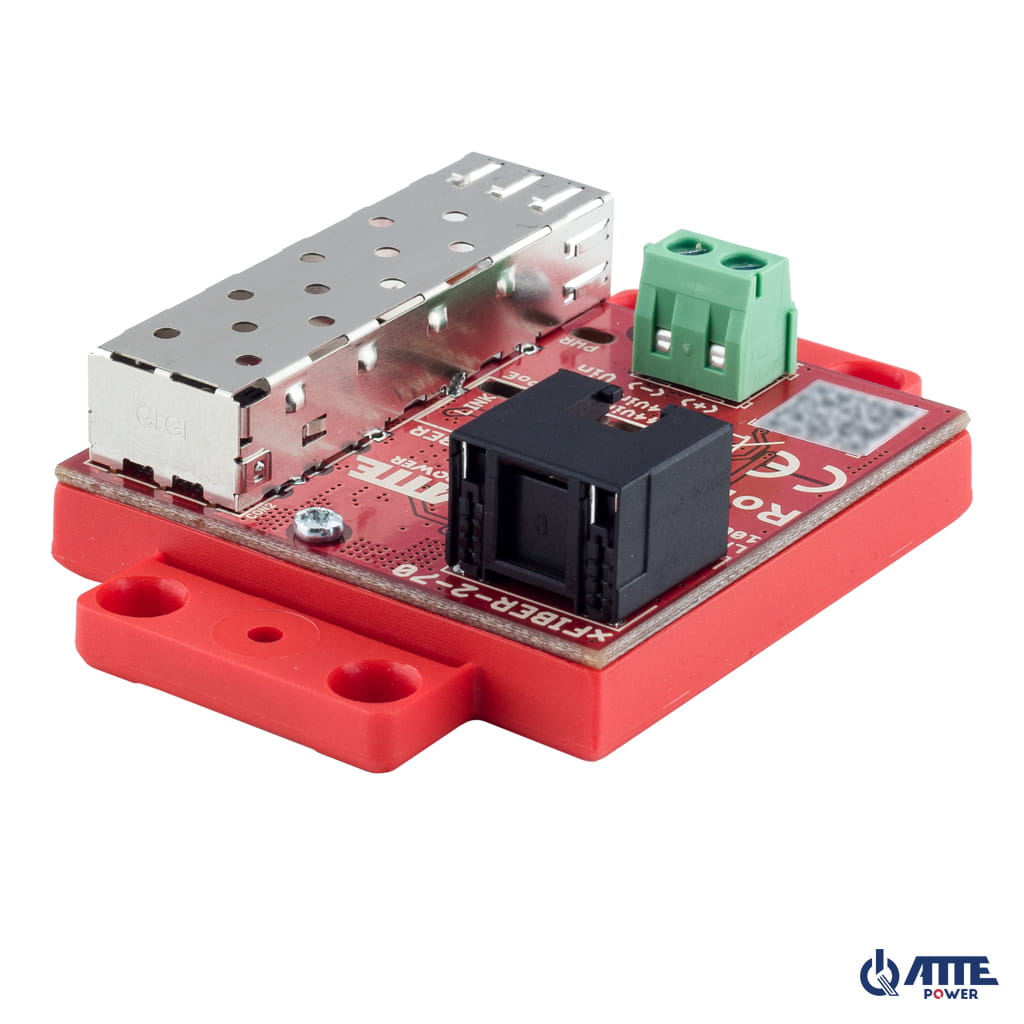

Gigabit Ethernet - SFP media converter, PoE OUT 802.3at/af/passive. 1x LAN 10/100/1000 Mbps and 1x SFP 1000 Mbps
Key features and functions:
- 10/100/1000 autonegotiation on LAN port + PoE
- power supply via screw connector (Vin) wide input voltage range
- easy and quick commissioning without configuring parameters
- very low power consumption (< 1.5W)
- small module size
xFIBER-2-70 is a Gigabit Ethernet - SFP converter dedicated to IP CCTV systems. Allows the change of transmission medium from UTP copper twisted pair to optical fibre and vice versa. Using any IEEE 802.3z-compatible SFP insert, we have the possibility to adapt the parameters of the optical path to the requirements of the installation (e.g. cooperation with single-mode or multimode optical fibres).
In combination with APS/AUPS power supplies and APT/xPoE extenders, it enables easy construction of distribution points for extensive CCTV installations based on fibre optic cabling.
The module can only be powered via the screw connector with a voltage in the range 12-58VDC. The gigabit LAN port can support PoE-powered devices.
Operating at 802.3af/at and PASSIVE (for Vin >44VDC). When the receiver is connected, the appropriate PoE power standard is automatically identified and selected.
The device has a very small size which allows for easy installation in small spaces.
The most convenient way to mount, are dedicated ABOX series enclosures and mounting plates, equipped with a system hole in the 10.8mm raster. The system solution allows vertical or horizontal mounting of selected devices in any hole-punched part of the housing or mounting sheet. Using an additional adapter, the device can be installed on a TH-35 rail.
Note! SFP inserts must be purchased separately (ATTE does not stock inserts) does not work with IEEE 802.3u 100Base-FX SFP inserts
Examples of applications
Example of using the xFIBER-2-70 as a distribution point for one PoE IP camera
Example of the use of xFIBER-2-70 and xPoE-3-11A in a distribution point with power backup
Technical data
| Total number of ports: | 1 PoE OUT port, 1 SFP port |
| PoE OUT: | LAN/LAN + PoE OUT |
| LAN 1000Mbps ports: | LAN/LAN + PoE OUT |
| LAN + PoE OUT 1000Mbps ports: | LAN/LAN + PoE OUT |
| Input Voltage: | 12 ... 58 V |
| Surge protection: | LAN/LAN + PoE OUT, CON1 |
| LAN bandwidth indication: | LAN LINK 10/100 (green) - Transmission 10/100 Mbps LAN LINK 1000 (green) - Transmission 1000 Mbps |
| Fibre optic activity indication: | FIBER ACT (green) - activity on the SFP port |
| Fibre optic transmission indication: | FIBER LINK (green) - transmission set-up on SFP port |
| Power indication: | LED PWR (white) - presence of power |
| PoE indication: | LAN LED (yellow) - presence of PoE |
| Transmission indication: | LAN ACT (green) - activity on the LAN port |
| Temperature range: | -25°C ... +65°C |

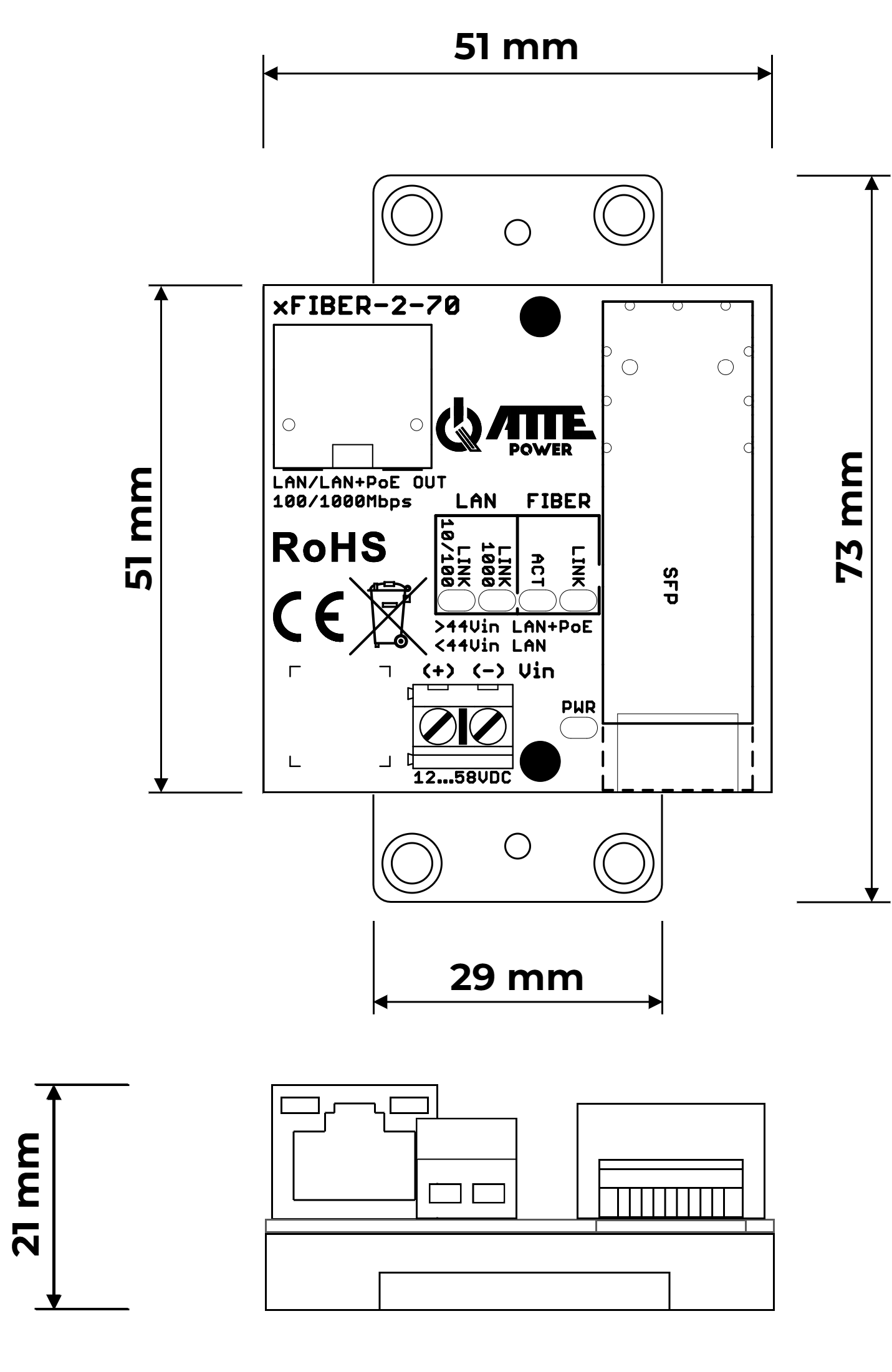

| Dimensions: | 51 x 51(73) x 21 mm |
| Weight: | 0,029 kg |
| IP rating: | IP20 |
| Housing construction: | Uniwersal mounting base |
| Assembly: | Mounting studs, TH35 rail with additional bracket, can be screwed to flat surface |
| EAN code: | 5902143691327 |
| PKWiU code: | 26.30.23.0 |
| HS code: | 8517 62 |
| CN2020 code: | 8517 62 00 |
