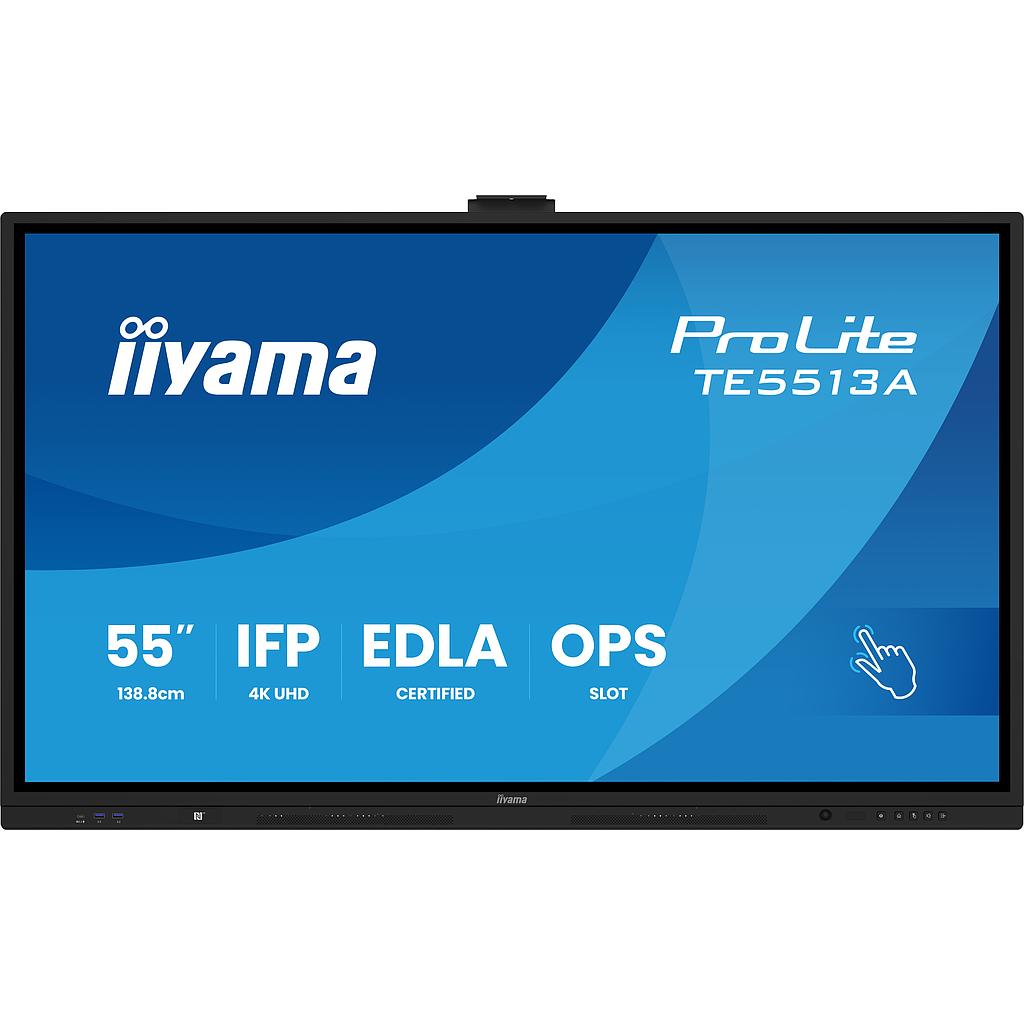

iiyama Prolite 55" interactive display, 40P touch, Android

1 599.00 € 1599.0 EUR

1 599.00 €

Lisa ostukorvi

Hind ei sisalda käibemaksu.
Toode on tellitav.

Tehnilised andmed

 DISPLAY CHARACTERISTICS

DesignThin bezel
Diagonal54.6", 138.8cm
PanelIPS
Touch GlassAnti-Glare glass with Anti-Gloss treatment, Anti-Bacterial coating, Ultra Smooth writing, Zero-Gap Air Bonding
Native resolution3840 x 2160 (8.3 megapixel 4K UHD)
Aspect ratio16:9
Brightness500 cd/m² (max.)
Light transmittance88%
Static contrast1200:1
Response time (GTG)8ms
Viewing zonehorizontal/vertical: horizontal°/vertical 178°, right/left: 0°/0°, up/down: 0°/0°
Colour support1.07B 10bit (8bit + Hi-FRC) (NTSC 72%)
Horizontal Sync30 - 135kHz
Viewable area W x H1209.6 x 680.4mm, 47.6 x 26.8"
Pixel pitch0.315mm
Bezel colour and finishblack, matte

 TOUCH

Touch technologyPureTouch-IR⁺
Touch points40, 10pt writing (HID, only with supported OS, 40-Punkt-Touch mit Android)
Scan rate200Hz
Touch response time5ms
Touch accuracy+- 1mm
Touch methodstylus, finger, glove (Passive pen, Opaque objects)
Touch interfaceUSB
Supported operating systemsAll iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Palm rejectionyes

 INTERFACES / CONNECTORS / CONTROLS

Digital signal inputHDMI x2 (v2.0) (H1 CEC/ARC / H2 CEC)
DisplayPort x1 (v1.2)
USB-C x2 ((DP-Alt, Data, Touch) front 100W PD, side 65W PD)
Audio inputMini jack x1 (Microphone)
Monitor control inputRS-232c x1 (DSUB 9pin)
RJ45 (LAN) x2 (LAN Control)
Digital signal outputHDMI x1 (2.0, max. 3840x2160 @60Hz, YUV444 / RGB444)
USB-C x1 (2.0, max. 3840x2160 @60Hz, YUV444 / RGB444, DP1 Alt Mode, USB-C X1 (3.2 Gen 1, 5 Gbps))
Audio outputS/PDIF (Optical) x1
Mini jack x1 (Headphone)
Speakers 2 x 20W (Front facing + 20W Subwoofer on the backside)
Monitor control outputOPS Slot x1 (Intel OPS 80pin - When installed: USB-C front: 65W, side: 15W)
HDCP2.2
USB portsx6 (media playback / peripherals / storage – front side: 1x USB-C 3.2 (Gen 1, 5Gbit, 100W PD), 2x 3.2 (Gen 1, 5Gbit), side: 1x USB-C 2.0 (480 Mbps, 65W PD), 1x 2.0 (480Mbps), 1x 3.2 (Gen 1, 5Gbit))
RJ45 (LAN)x2 (IN / OUT, Auto switch for PC & Android, 1000MB)

 FEATURES

Integrated softwareiiWare 21E (Android 14 OS, Android 16 summer 2026) featuring Google EDLA, iiControl (DMS), WhiteBoard, web browser, file manager, cloud drives and iiShare for wireless connection with Windows/iOS/Android devices
WiFiyes (WiFi-6E, Bluetooth 5.0)
HardwareSOC: RK3576 Octa-core A72*4 + A53*4, GPU: Mali G52 MC3, RAM: 8 GB, ROM: 128 GB
ExtraAmbiant light Sensor, PIR Motion Sensor, NFC, Slot for optional OPS PC, 4x Touch pen
Max. non-stop operating time24/7 (While the components are rated for 24/7 operation, we recommend usage not exceeding 18 hours per day to ensure optimal product longevity)
Media playbackyes
Glass thickness3.2mm
Glass hardness7H
Housing (bezel)metal
OSD key lockyes

 GENERAL

OSD languagesEN, DE, FR, ES, IT, RU, CZ, NL, PL, CAT, SV, FI, DA, NB, , , , ,
Control buttonsPower, Home, Freeze, Volume, Input (source)
User controlsgeneral settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode colour temp), settings (wireless & networks, share, device, personal, system)
Blue light reduceryes
Flicker free98" not supported
Plug&PlayDDC2B
Warranty5 years (for details and eligible countries please check the Warranty section of our website)

 MECHANICAL

Orientationlandscape
Fanless designyes
VESA mounting400 x 400mm
Operation temperature range0°C - 40°C
Storage temperature range- 20°C - %2°C
MTBF50.000 hours (excluding backlight)

 ACCESSORIES INCLUDED

Cablespower (EU 3m, UK 3m), USB (3m), HDMI (3m)
Touch penx4 (Dual function tips)
Guidesquick start guide, safety guide
OtherWall Mounting Bracket (VESA 400x400), Webcam Mounting Bracket
Remote controlyes (batteries included)

 POWER MANAGEMENT

Power supply unitinternal
Power supplyAC AC - 100V, 240/V, 50Hz
Power usage126W typical, 0.5W stand by, 0.3W off mode

 SUSTAINABILITY

RegulationsCB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (RoHS)
Energy efficiency class (Regulation (EU) 2017/1369)G
REACH SVHCabove 0.1%: Lead

 DIMENSIONS / WEIGHT

Product dimensions W x H x D1267 x 765.5 x 117.5mm
Weight (without box)28.7kg
