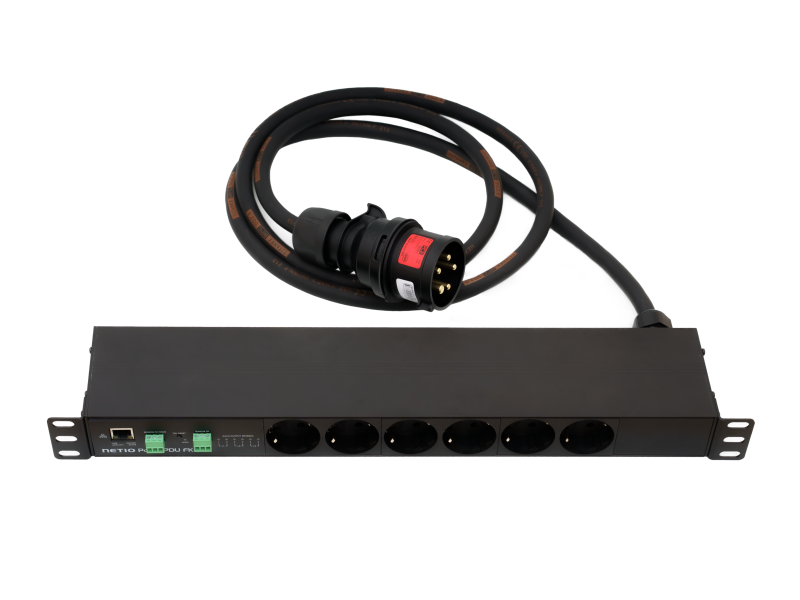

PowerPDU FK6, 3F PDU with metering & switching (3*16A/400V power input, 5-pin CEE plug), 6*16A Schuko (Type F) independent sockets (2 outputs per phase)
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
PowerPDU FK6 is a three-phase PDU with metering & switching capabilities with a 3 × 16A/400V power input (5-pin CEE plug). It features six independent 16A Type F (Schuko) power sockets, providing two outputs per phase. It includes two digital inputs (DI), LAN and Wi-Fi connectivity, ZVS and nBus support, integration with NETIO Cloud, and open APIs supporting SNMP, MQTT-flex, XML/JSON, Modbus/TCP, and other protocols.
The PowerPDU FK6 is power supply by 3x16A 400V (CEE 5-pole connector/ IEC 60309 RED 400V (3P+N+E 6h)).
Device provides six independent, metered, and switchable power outputs (6 × 230 V- Type F-Schuko) divided into pairs between 3 phases, each pair rated for 16 A.
The device is also equipped with two Digital Inputs (DI), those can be used for direct connection to a NETIO sensors, NETIO nBus (device daisy-chaining feature), or an S0 counter. Additionally, the PowerPDU VK6 supports both LAN connectivity and integrates all the benefits of the NETIO Toolbox.
Thanks to the Open API, integration with third-party systems using various protocols (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...) is easy.
With the NETIO Cloud service, the outputs can be controlled from anywhere. The NETIO Cloud service, provided for a fee, uses SSL security and servers in Europe.
Typical applications
LED WALLs installation (Power OFF/ ON/ RESTART)
LED WALLs consumtion metering
AV - 3 phase instalation in broadcasting
IT – high power rack power control
Electricity consumption monitoring for machines in the industry
Controlling the outputs using Open API (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...)
Integration with various third-party programs and applications.
AV drivers for integration
NETIO products can be used together with plenty 3rd party software / hardware or cloud services.
Atlona
AURORA
BrightSign media player (BrightAuthor]
Crestron (SIMPL blocks)
Control4
Cue
ELAN
Elgato Stream Deck
PIXILAB Blocks
Q-SYS
RTI
SKAARHOJ
Utelogy
and many more
