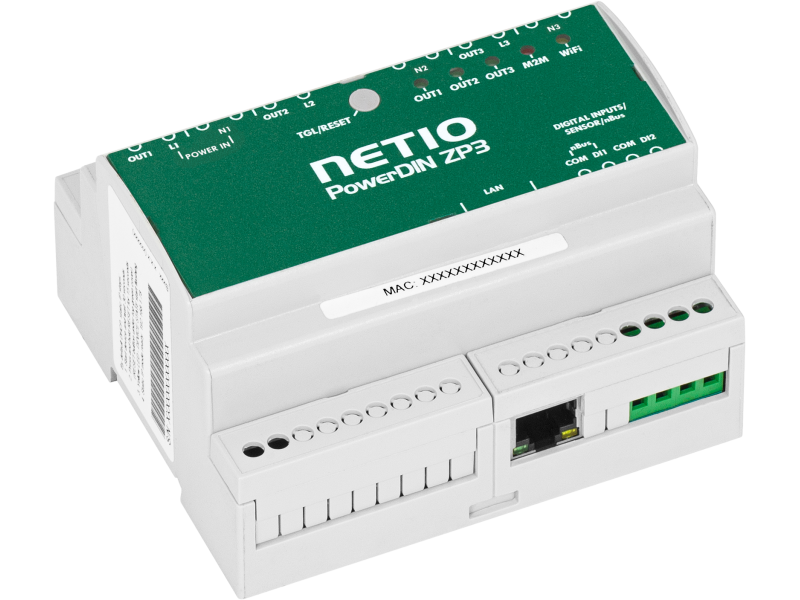

PowerDIN ZP3 is a device featuring three independent phase electricity switching channels (3 × 240V/16A per output). It includes two digital inputs (DI), LAN and Wi-Fi connectivity, ZVS and nBus support, integration with NETIO Cloud, and open APIs supporting SNMP, MQTT-flex, XML/JSON, Modbus/TCP, and other protocols.
and industrial automation applications.
It can operate as smart switching device in a three-phase system (400 V, 3×16 A) or as smart switching device in a single-phase system with three independent channels (3x230V/ 16A).
The device is also equipped with two Digital Inputs (DI), those can be used for direct connection to a NETIO sensors, NETIO nBus (device daisy-chaining feature), or an S0 counter
Thanks to the Open API, integration with third-party systems using various protocols (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...) is easy.
With the NETIO Cloud service, the outputs can be controlled from anywhere. The NETIO Cloud service, provided for a fee, uses SSL security and servers in Europe.
Typical applications
LED WALLs installation (Power OFF/ ON/ including remote RESTART)
Switching ON/OF/ RESTART - 3-phase systems in electrical cabinet (400V/ 3x16A)
Switching three ON/OF/ RESTART independent single phase outputs (3 x 230V/16A)
Controlling the outputs using Open API (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...)
Integration with various third-party programs and applications.
AV drivers for integration
NETIO products can be used together with plenty 3rd party software / hardware or cloud services.
Atlona
AURORA
BrightSign media player (BrightAuthor]
Crestron (SIMPL blocks)
Control4
Cue
ELAN
Elgato Stream Deck
PIXILAB Blocks
Q-SYS
RTI
SKAARHOJ
Utelogy
and many more
