Buffer kit for up to 9 IP cameras, PoE switch 9P+1UP

Buffer kit for up to 9 IP cameras, in ABOX-F indoor enclosure (space for 18 Ah battery), 72 W power supply, 10-port 10/100Mbps PoE switch (9xPoE + 1xUplink), electronic fuses, Long Range mode.

Key features and functions:

• buffer power supply for 9 PoE 802.3af/at or PASSIVE receivers
• data transmission up to 280 m (Long Range mode)
• electronic fuse for each PoE channel (auto-reset)
• PoE can be disabled on selected ports
• clear LED indication of power and data transmission status
• up to 60W of power on the LAN_5 PoE IN/OUT port
• up to 40W of power on the other PoE ports
• quick and easy setup with no configuration required
• high efficiency of the power supply module (90%)
• two supply voltage options are available: 12 VDC and 48 VDC
• easy and quick installation service thanks to modular design
• easy expansion and scaling of the system by adding additional xPoE / IP and IPB / IPUPS series switches
• installation of modules in any perforated part of the enclosure (hole pattern system)
• space for an 18 Ah battery

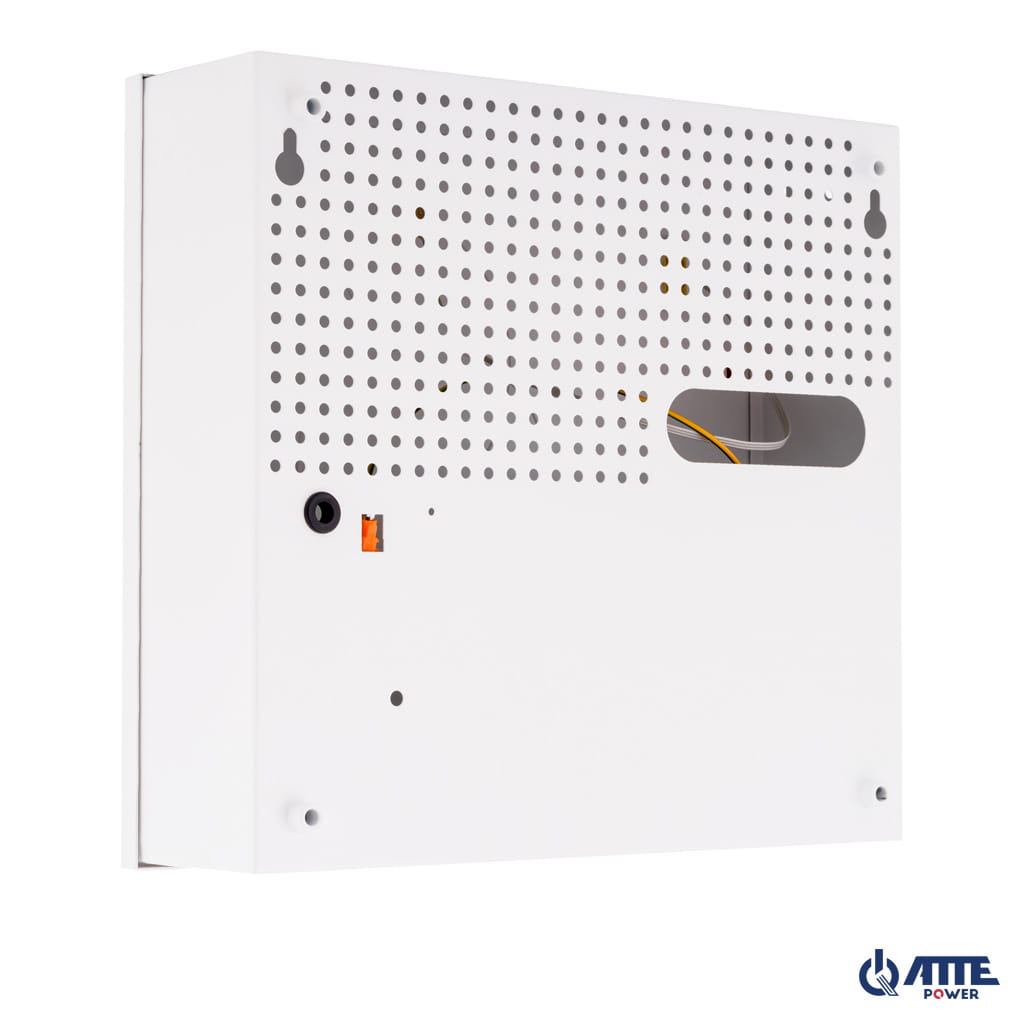

• cable entry at the rear of the enclosure
• distance to the wall/mounting surface
• possibility of storing excess cables inside the enclosure

The kit includes:

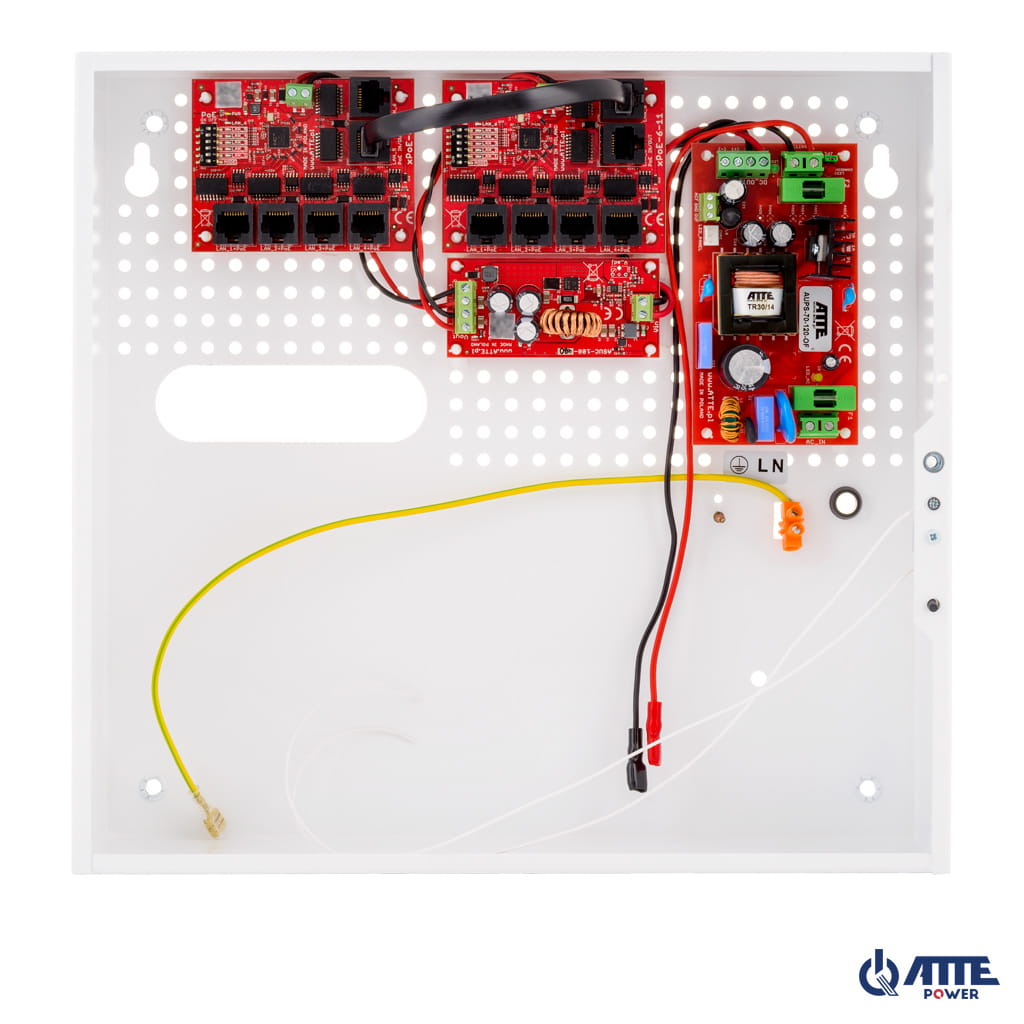

1x ABOX-F enclosure

1x AUPS-70-120-OF power supply

1x ASUC-100-480-OF DC/DC converter

2x xPoE-6-11-OF PoE switch

Note: battery not included.

IPUPS-9-11-F is a ready-to-use kit designed to provide buffered power for an IP CCTV system with 9 IP cameras. Electronic protection on the PoE outputs ensures continuous operation of the system in the event of a short circuit or overload on individual power channels, and automatically restores voltage once the fault is cleared.

Buffered PoE switch kits are intended for use with IP cameras and other network devices supporting PoE 802.3af/at or PASSIVE PoE.

Connecting appropriate batteries ensures uninterrupted operation of the power system during temporary mains power outages.

The “Long Range” mode allows you to increase the transmission range up to 280m using standard UTP twisted pair cable. The switch allows you to work in two modes: standard and extended range. When the Long Range switch is in the OFF position, all ports operate at 100 Mbps and offer Ethernet range up to 100 meters. When the dip switch is set to ON, the range on ports 1 to 4 is increased to 280 meters, while the speed on these ports is reduced to 10 Mbps. This bandwidth is sufficient for the efficient operation of a single camera. In both modes, the speed of UpLink ports 5 and 6 is 100 Mbps. With LongRange mode enabled, we provide greater flexibility in camera placement. Increasing the distance from the switch allows for easier coverage of a large area without the need to build additional distribution points.

“STANDARD” mode (MODE = OFF)

LAN 1 ... LAN 4 - 10/100 Mbps PoE OUT, range up to 100m

LAN 5 - 10/100 Mbps, PoE IN/OUT range up to 100m

LAN 6 - 10/100 Mbps, range up to 100m

“LONG RANGE” mode (MODE = ON)

LAN 1 ... LAN 4 - 10 Mbps PoE OUT, range up to 280m

LAN 5 - 10/100 Mbps, PoE IN/OUT range up to 100m

LAN 6 - 10/100 Mbps, range up to 100m

Regardless of the selected operating mode, the switch supports PoE short-circuit and surge protection to protect network devices.

Port 6 UpLink cannot enable PoE regardless of the selected operating mode. It allows for secure connection of different LAN segments.

Notes:

• by default, LongRange mode is disabled
• changing modes requires a power restart
• it is recommended to test the functionality before deployment
• no VLAN port isolation – all switch ports can communicate with each other uninterrupted, regardless of the operating mode
• for long-distance setups, we recommend powering the switch with 55 V from a dedicated APS-90-550-OF power supply or using an ASUC-100-550-OF converter in buffered sets
• the transmission distance depends on the cable used; Cat5e or Cat6 cables are recommended. Using low-quality cables or CCA cables will significantly reduce the range and limit the PoE power available to the camera

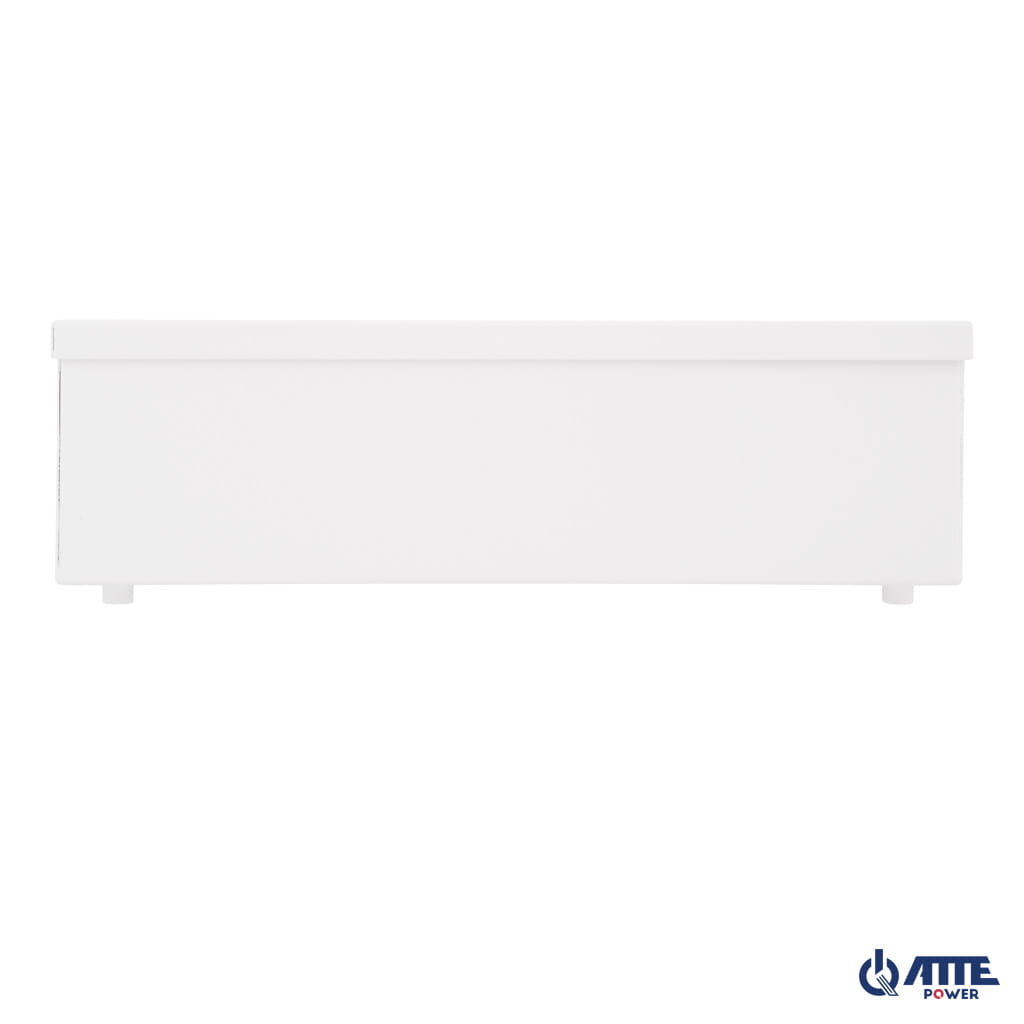

ABOX series indoor enclosures provide a convenient solution for the aesthetic installation of devices and termination of cabling inside buildings. All enclosures are made of powder-coated steel sheet finished in semi-matt white. Production using a modern technological line ensures the highest quality and precision of workmanship. Each enclosure is equipped with a screw lock, removable door, and door tamper switch.

The available models feature dedicated perforation with a 10.8 mm hole pattern, compatible with the mounting hole spacing of installation modules. This system solution enables vertical or horizontal installation of selected devices in any perforated section of the enclosure.

Example application of the IPUPS-9-11-F kit to power a recorder along with 9 PoE IP cameras.
