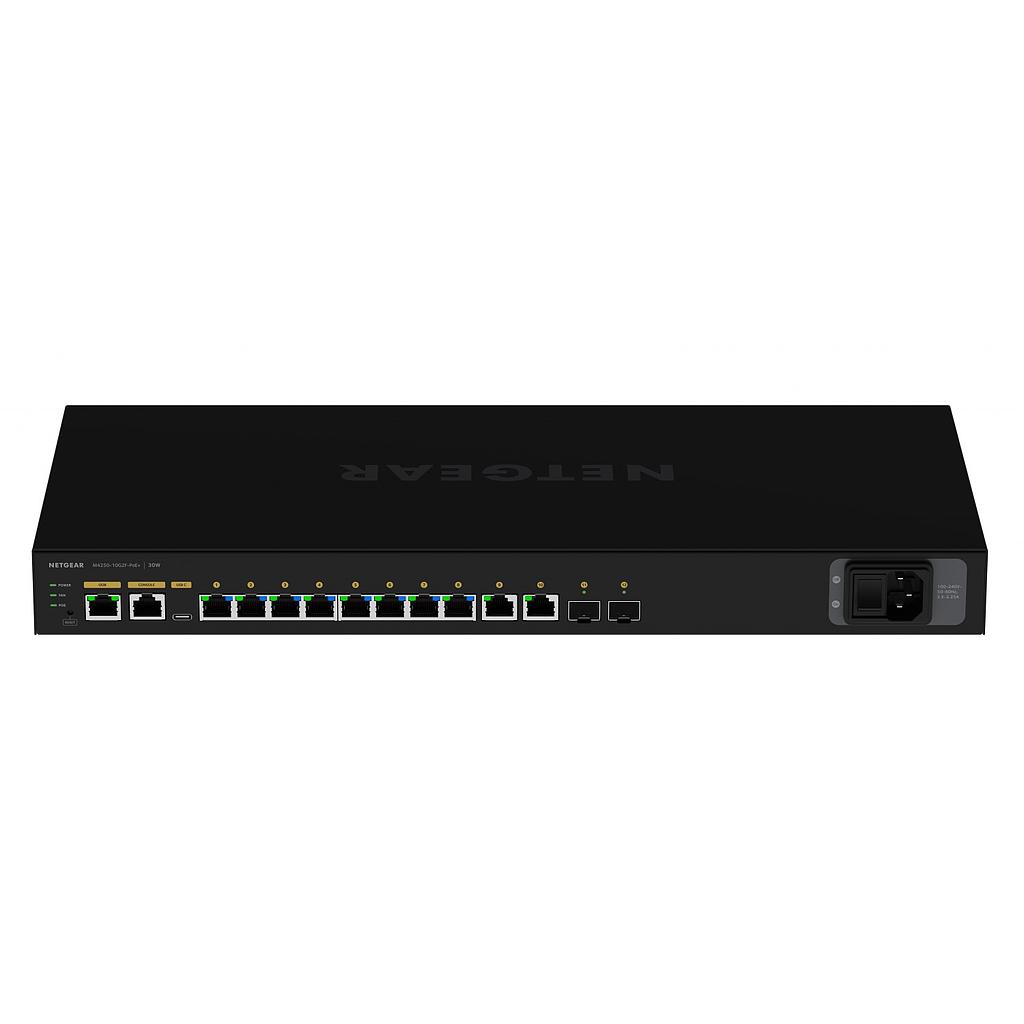

Netgear 10 port GB AV line managed switch, 8*PoE+ (125W), 2*SFP
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
| General | |
| Device Type: | Switch - 12 ports - L3 - Managed |
| Enclosure Type: | Side to side airflow rack-mountable 1U |
| Subtype: | Gigabit Ethernet |
| Ports: | 10 x 10/100/1000 (8 PoE+) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE): | PoE+ |
| PoE Budget: | 125 W |
| Performance: | Switching capacity: 24 Gbps Firewall throughput (64-byte packet size): 17.86 Mpps Latency (1 Gbps): < 2.27 µs |
| Capacity: | VLANs supported: 4093 ARP entries: 4000 Multicast entries (IPv4): 512 Multicast entries (IPv6): 128 Jumbo frame size: up to 12000 IGMP multicast groups: 2000 MSTP instances: 16 PVST instances: 32 |
| MAC Address Table Size: | 16K entries |
| Routing Protocol: | RIP, IGMP, IGMPv2, IGMPv3, MLDv2, static IPv4 routing, static IPv6 routing, PIM-DM, PIM-SM, PIM-SSM |
| Remote Management Protocol: | CLI, SNMP, HTTPS, Telnet, SSH, RADIUS, TACACS+, RMON 1, RMON 2, RMON 9 |
| Encryption Algorithm: | TLS 1.2, SSL 3.0 |
| Features: | 16MB packet buffer, RSPAN, PIM, DHCP server, policy based routing, LLDP-MED, MVRP, STP support, Rapid Reconfiguration of Spanning Tree (RSTP), BPDU, STRG, VLAN support, GVRP, GMRP, LACP, LAG, Private VLAN, DHCP snooping, DAI, IP source guard, DHCP relay, AAA, sFlow, QoS, DoS attack prevention |
| Compliant Standards: | IEEE 802.1ak, IEEE 802.1as, IEEE 802.1Qat, IEEE 802.1Qav, IEEE 802.3az, IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at |
| Processor: | X ARM A9: 1.25 GHz |
| RAM: | 2 GB |
| Flash Memory: | 256 MB |
| Expansion / Connectivity | |
| Interfaces: | 10 x 10/100/1000 Base-T RJ-45 8 ports (PoE+) 2 x 1000Base-X SFP 1 x management (Gigabit LAN) RJ-45 1 x console RJ-45 1 x USB Type A 1 x console (USB) Type C |
| Power | |
| Power Device: | Internal power supply |
| Installed Qty: | 1 |
| Voltage Required: | AC 110 V |
| Power Consumption Operational: | 17.32 watt |
| Power Consumption Stand by: | 8.53 watt |
| Miscellaneous | |
| Included Accessories: | Mounting brackets |
| Cables Included: | Console cable USB-C to USB-A cable |
| Rack Mounting Kit: | Included |
| Compliant Standards: | IEEE 1588, AN/NZS 60950.1:2015, ANSI C63.4:2014, AS/NZS CISPR32:2013 Class A, CCC, CISPR 32:2012, CNS 13438 Class A, CNS 14336-1, EN 55024:2010, EN 55032:2012+AC:2013 Class A, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011, EN 61000-3-2:2014 Class A, EN 61000-3-3:2013, FCC CFR47 Part 15 B Class A, GB 4943.1-2011, GB/T9254-2008 Class A, ICES-003:2016 issue 6 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, IEC60950/EN60950, VCCI-CISPR 32:2016 Class A, YD/T993-1998 |
| Localisation: | Europe |
| Dimensions & Weight | |
| Width: | 44 cm |
| Depth: | 20 cm |
| Height: | 4.32 cm |
| Weight: | 2.85 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 45 °C |
| Humidity Range Operating: | 90% (non-condensing) |
| Min Storage Temperature: | -20 °C |
| Max Storage Temperature: | 70 °C |
| Humidity Range Storage: | 95% (non-condensing) |
