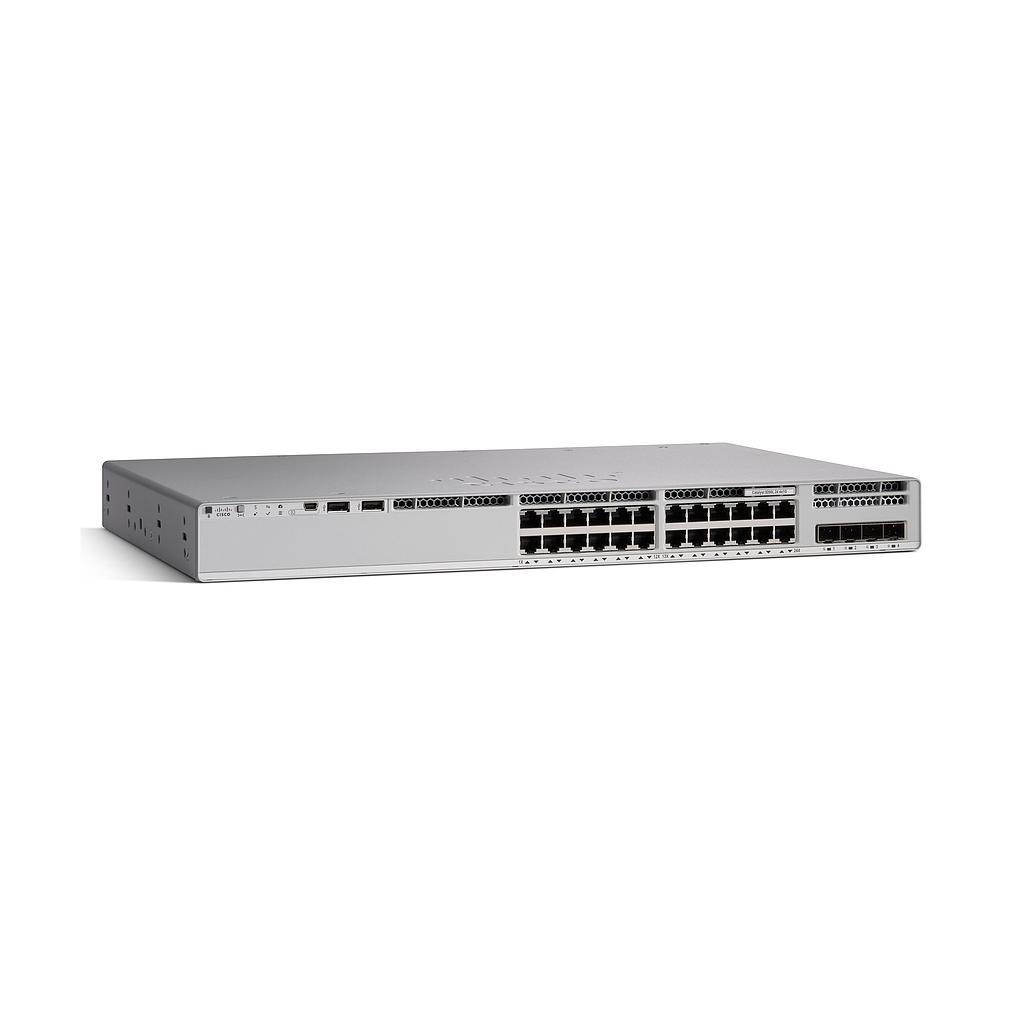

Catalyst 9200 24-port data only, Network Essentials, DNA subscription required
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
| General | |
| Device Type: | Switch - 24 ports - L3 - Managed - stackable |
| Enclosure Type: | Rack-mountable |
| Subtype: | Gigabit Ethernet |
| Ports: | 24 x 10/100/1000 |
| Performance: | Stacking bandwidth: 160 Gbps Switching bandwidth: 128 Gbps Forwarding rate: 190.4 Mpps |
| Capacity: | Virtual networks: 4 IPv4 routing table entries: 4000 IPv6 routing table entries: 2000 Flexible NetFlow entries: 16000 Packet buffer size: 6 MB VLAN IDs: 4096 Switched virtual interfaces (SVIs): 1000 |
| MAC Address Table Size: | 32000 entries |
| Jumbo Frame Support: | 9198 bytes |
| Routing Protocol: | OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
| Remote Management Protocol: | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Encryption Algorithm: | 128-bit AES |
| Features: | ARP support, STP support, QoS, Rapid PVST+, SRR, PXE support, RSPAN, Energy Efficient Ethernet, MIB, CoS, FNF, Cisco StackWise-160 technology, DSCP support, MACsec support, CoPP, SPAN, EEM, PIM, FHS, PVLAN support, CIR |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP) |
| RAM: | 4 GB |
| Flash Memory: | 4 GB |
| Expansion / Connectivity | |
| Interfaces: | 24 x 10/100/1000 Base-T RJ-45 1 x network stack device 1 x management (LAN) RJ-45 1 x console RJ-45 |
| Expansion Slots: | 1 (total) / 1 (free) x Expansion Slot |
| Power | |
| Power Device: | Internal power supply - hot-plug |
| Max Supported Qty: | 2 |
| Power Redundancy: | Optional |
| Power Provided: | 125 watt |
| Voltage Required: | AC 100-240 V (50 - 60 Hz) |
| Miscellaneous | |
| MTBF: | 587,800 hours |
| Compliant Standards: | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35 |
| Dimensions & Weight | |
| Width: | 44.5 cm |
| Depth: | 35 cm |
| Height: | 4.4 cm |
| Weight: | 5 kg |
| Environmental Parameters | |
| Humidity Range Operating: | 5 - 90% (non-condensing) |
| Min Storage Temperature: | -40 °C |
| Max Storage Temperature: | 70 °C |
| Humidity Range Storage: | 5 - 90% (non-condensing) |
