Tehnilised andmed
Description

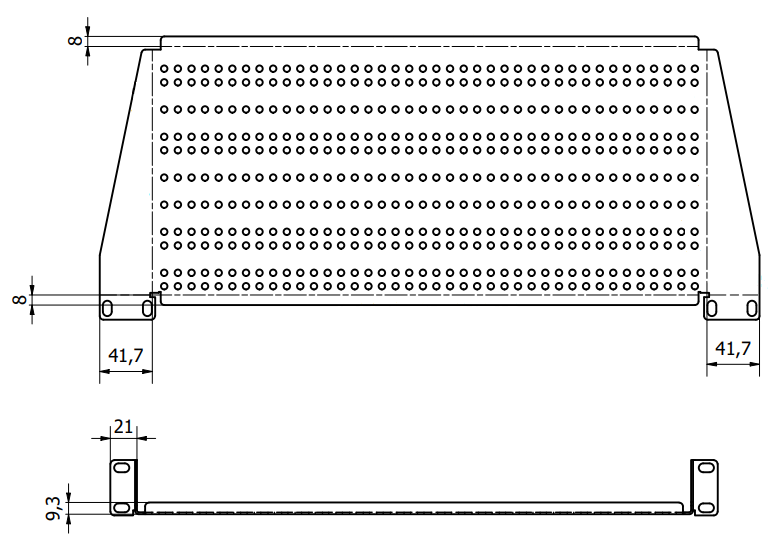

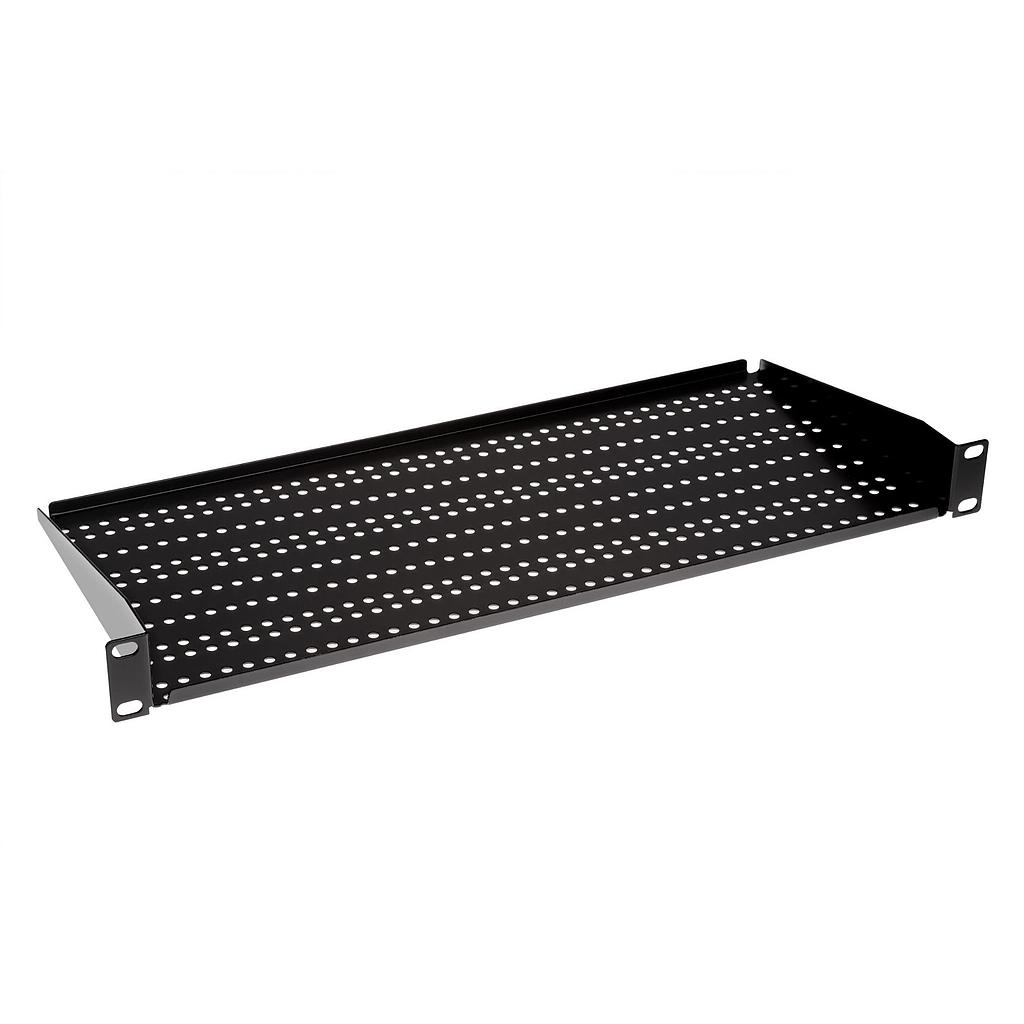

RACK 19" 1U 200mm shelf with holes, hole diameter 10,8mm, screws M6 (included)
ADD-RACK1PU1 mounting adapter is a dedicated solution for mounting ATTE modules in a RACK cabinet. The use of an adapter simplifies installation and convenient placement of modules, and helps to organize the wiring. Together with the patch panel, which is the end point of the structured cabling for twisted pair cable, and the cable organizer, which facilitates the routing of cables in the cabinet, it allows to increase the aesthetics of the assembly and ensures a professional appearance of the installation.
Key features and functions:
- Enables mounting of ATTE modules in a 19" RACK cabinet
- Large usable area for installing multiple devices at the same time
- 4.8mm hole pattern in 10.8mm pitch compatible with all modules from the offer
- Horizontal mounting of components
Technical data
| Temperature range: | -25°C ... +65°C |
| Dimensions: | 482 x 45 x 200 mm |
| Weight: | 1,17 kg |
| IP rating: | IP20 |
| Housing construction: | Powder-coated steel sheet RAL 9004 |
| Housing: | RACK 19", screws M6 (included) |
| EAN code: | 5902143691495 |
| PKWiU code: | 25.99.29.0 |
| HS code: | 7326 90 |
| CN2020 code: | 7326 90 98 |
