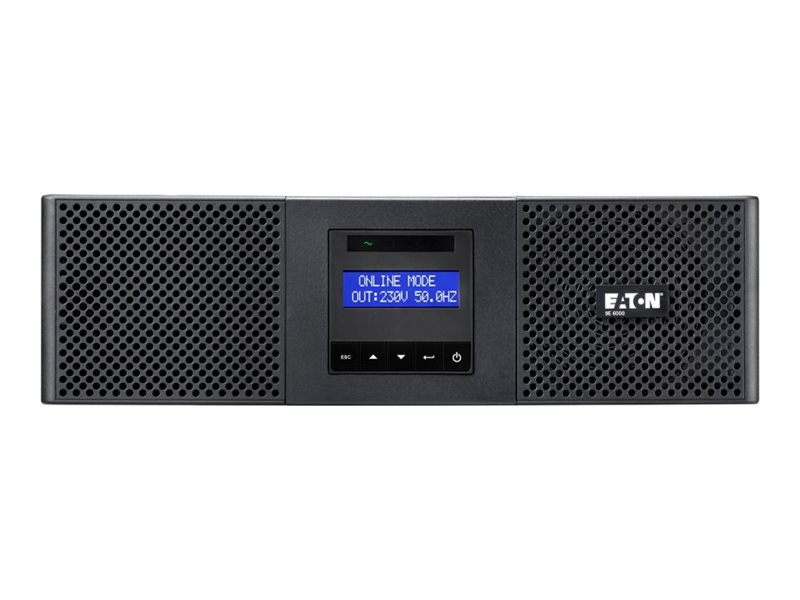

Eaton 9E 6000i rack 3U UPS 6kVA
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
| General | |
| Device Type: | UPS - rack-mountable |
| Height (Rack Units): | 3U |
| Rack Size: | 19" |
| Colour: | Black |
| Power Device | |
| UPS Technology: | On-line |
| Input Voltage: | AC 200/208/220/230/240 V |
| Input Voltage Range: | AC 176 - 276 V |
| Input Wiring: | 1-phase |
| Frequency Required: | 50/60 Hz |
| Input Connectors: | 1 x hardwire |
| Power Output Connectors Details: | 1 x hardwire 8 x power IEC C13 2 x power IEC C19 |
| Power Capacity: | 5400 watt / 6000 VA |
| Output Waveform: | Sinewave |
| Circuit Protection: | Circuit breaker |
| Efficiency: | 94% at 100% Load |
| Power Factor (PF): | 0.9 |
| Battery | |
| Quantity: | 15 |
| Technology: | Lead Acid |
| Features: | Sealed |
| Networking | |
| Remote Management Interface: | RS-232, USB |
| Expansion / Connectivity | |
| Interfaces: | 1 x RS-232 - 9 pin D-Sub (DB-9) 1 x USB 1 x remote power off - mini terminal block |
| Expansion Slots: | 1 (total) / 1 (free) x Communication slot |
| Miscellaneous | |
| Included Accessories: | Mounting kit, USB cable, 2 cable glands |
| Cables Included: | 2 x power cable (IEC) |
| Rack Mounting Kit: | Included |
| Features: | 3000 m operating altitude, internal bypass, automatic shut down, automatic battery test, temperature-compensated battery charging, deep discharge protection, LCD display |
| Compliant Standards: | LVD, EMC, RoHS, REACH, WEEE, Packaging Directive, IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, UKCA, CM, UKR |
| Software / System Requirements | |
| Software Included: | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 0 - 95% RH (non-condensing) |
| Sound Emission: | 46 dB |
| Dimensions & Weight | |
| Width: | 44 cm |
| Depth: | 68.6 cm |
| Height: | 13 cm |
| Weight: | 45.15 kg |
