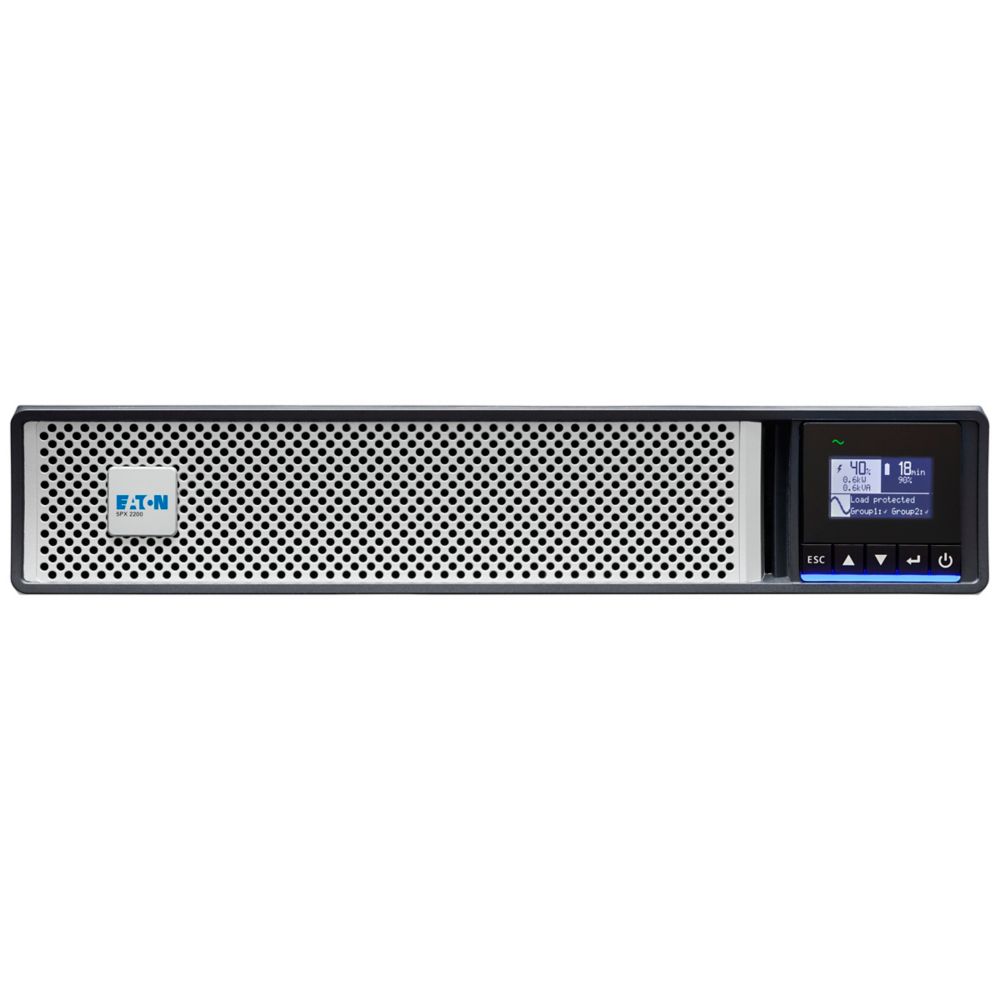

Eaton 5PX Gen2 UPS, 2200VA/2200W, input: C20, output: (8) C13, (2) C19, rack/tower, 2U, network card included
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
| General | |
| Device Type: | UPS - rack-mountable / external |
| Height (Rack Units): | 2U |
| Power Device | |
| UPS Technology: | Line interactive |
| Input Voltage Range: | AC 160 - 294 V |
| Input Voltage Range (Adjustable): | AC 150 - 294 V |
| Frequency Provided: | 50/60 Hz ± 0.1Hz |
| Frequency Required: | 47 - 70 Hz |
| Input Connectors: | 1 x power IEC 60320 C20 |
| Power Output Connectors Details: | 8 x power IEC 60320 C13 2 x power IEC 60320 C19 |
| Output Voltage: | AC 200/208/220/230/240 V + 6% / - 10% - 50/60 Hz |
| Power Capacity: | 2200 watt / 2200 VA |
| Output Waveform: | Sinewave |
| Battery | |
| Run Time (Up To): | 50 min at 300 Watts 28 min at 500 Watts 16 min at 800 Watts 9 min at 1200 Watts 4 min at 1800 Watts |
| Networking | |
| Remote Management Interface: | RS-232, USB, Ethernet 10/100/1000 |
| Expansion / Connectivity | |
| Interfaces: | 1 x management (RS-232) - RJ-45 1 x management (USB) - 4 pin USB Type B 1 x management (Gigabit Ethernet) - RJ-45 |
| Expansion Slots: | 1 (total) / 0 (free) x Expansion Slot |
| Miscellaneous | |
| Included Accessories: | Tower stand |
| Rack Mounting Kit: | Included |
| Features: | Advance Battery Management (ABM), LCD display, hot-swappable batteries |
| Compliant Standards: | IEC 62443-4-2, UL 2900-1, EN 62040-1, IEC 62040-1, CSA 22.2, UL 1778, EN 62040-2, IEC 62040-2, CISPR 22 Class B, FCC Class B certified, CB, TUV, cTUVus, EAC, UKCA |
| Sustainability Information | |
| ENERGY STAR: | Yes |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Sound Emission: | 40 dBA |
| Dimensions & Weight | |
| Width: | 43.8 cm |
| Depth: | 60.3 cm |
| Height: | 8.55 cm |
| Weight: | 28.2 kg |
