| Comments: | The charger is designed for 12V batteries only. Make sure that the cables are properly matched to the batteries. Before removing the battery, first turn off all receivers and then disconnect it from the circuit. Only use |

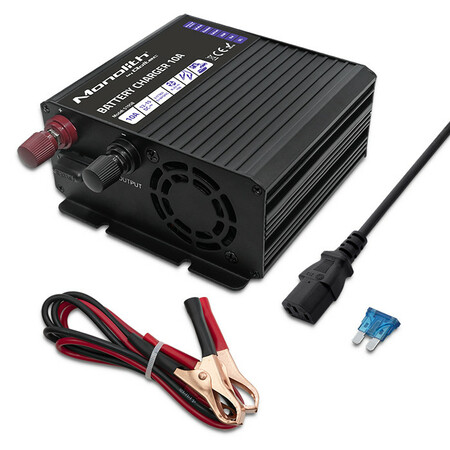

| Package contents: | 1 x Battery Charger 1 x Power Cable 1 x Set of Jumper Cables 1 x Fuse 1 x User Manual |

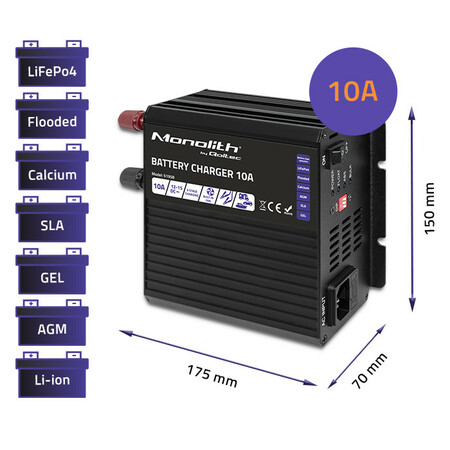

| Dimensions (D/L x W x H): | 150x175x70mm |
| Depth / Length of package [mm]: | 192 |
| Package width [mm]: | 260 |
| Package height [mm]: | 92 |
| Net weight [kg]: | 1.327 |
| Gross weight [kg]: | 1.523 |
| Certificate: | CE |
| Additional information: | The device has been CE tested and confirms compliance with applicable directives and standards. |
| Operating temperature: | 0˚C ~ +40˚C |
| Charging type: | 3-step charging mode |
| Input voltage: | 180 - 260V |
| Output voltage: | 12-15DC |
| Output current: | Max 10A |
| Load regulation: | 1.5% for output current; from no load to full load 0-40˚C |

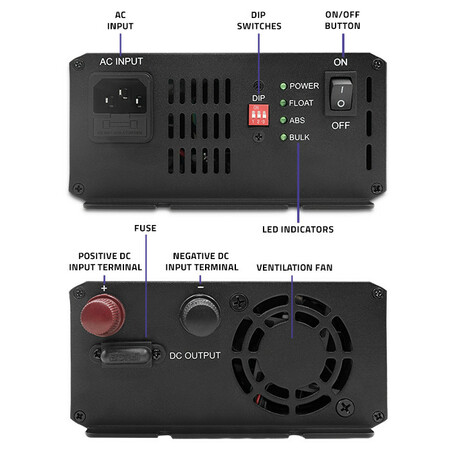

| Connector: | Red + black crocodile type terminals with brass contacts |
| Efficiency: | 88% |
| Cooling: | 1 x Thermally controlled fan |
| Security: | Short circuit protection Overheat protection Over current protection Low voltage protection Over voltage protection Reverse polarity protection |
| Battery overcharge protection: | Yes |
| Application: | LiFePO4 AGM GEL SLA Calcium EFB |
| Power cord length: | ~0.90m |
